Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires

1
MOQ
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Diâmetro da entrada: 38mm
Diâmetro de saída: 6mm
Tensão: 380 V
Poder: 55W
Dimensões: 2500*2000*2500mm
Peso: 8000 kg
Diâmetro do eixo tracionador: 1400mm
Fio de entrada máximo: Ø38mm
Fio de entrada mínimo: Ø6mm
Velocidade de desenho: 30 m/min
Compressibilidade: 25%
Potência do motor: 75-110 kW
Dimensões gerais: 3×2,3×2,6M
Componentes principais: Motor
Ano: 2022
Destacar:

Long Service Life Wire Drawing Machine

,

Large Capacity Inverted Type Wire Drawing Machine

,

Continuous Working Vertical Drop Type Wire Drawing Machine
Informação básica
Lugar de origem: Jiangsu, China
Condições de Pagamento e Envio
Descrição de produto

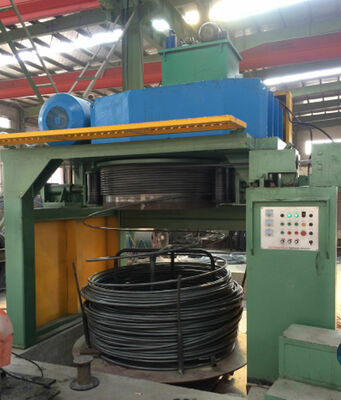

Inverted/Vertical Drop Type Wire Drawing Machine
Product Overview
The inverted type wire drawing machine is engineered for large capacity and continuous operation. This robust system integrates both wire drawing and wire coiling processes, making it suitable for processing high, medium, and low-carbon steel wire, profile wire, stainless steel wire, and thick non-ferrous metal wire. The machine features a heavy-duty large recoiler system that facilitates easy wire unloading.
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 0 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 1 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 2 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 3
Product Specifications
Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 4 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 5 Inverted Type Wire Drawing Machine with Large Capacity Continuous Working and Long Service Life for Steel and Non-Ferrous Wires 6
Model Unit 1400 1200 1000 800
Capstan diameter mm 1400 1200 1000 800
Maximum diameter of inlet wire mm Ø38 Ø28 Ø20 Ø12
Minimum diameter of inlet wire mm Ø12 Ø12 Ø6 Ø6
Drawing speed M/min 30 40 50 70
Designed compressibility % 25 25 25 25
Motor power kw 75-110 55-75 45-55 30-37
Weight kg 10000 8000 6000 5000
Overall dimensions M 3×2.3×2.6 2.8×2.3×2.6 2.5×2×2.5 2.3×1.5×2.5
